DESCRIPTION

Basic Info

Model NO.	ZT4T
Feed Cylinder Structure	Single-Room Feeding
Dosing Device	Rotor
Filling Principle	Negative Pressure
Packaging Container Lifting Structure	Chute Lifting
Structure	Linear
Packaging	Bottle
Packaging Material	Wooden Case
Product Name	Rotor Pump Filling Machine
Filling Volume	50-5000ml
Filling Speed	10-30 Bottles/Min
Motor Power	1.6kw
Voltage	110/220V 50/60Hz
Motor	Servo Motor Driving
Transport Package	Standard Export Package or as Your Request
Specification	2000*1050*1900mm
Trademark	JVAN PACK
Origin	China
HS Code	8422301090
Production Capacity	200 Unit/Units Per Month

Product Description

Product Parameters

Voltage	110/220V 50/60HZ
Motor Power	1.6KW
Filling Speed	10-30 Bottles/Min
Filling Volume	50-5000ml
Filling Accuracy	For 200ml accuracy is±1g; For more 200ml accuracy is ±0.5%
Air Pressure	0.5-0.7Mpa
Motor	Servo motor driving
Machine Size	2000*1050*1900mm
Weight	460Kg

Detailed Photos

PLC Control Panel

> With the touch screen control panel, it is easy to set theparameters. What' s more, it is available to directly set the filling volume.

Rotor Pump

> Equipped with rotor pump, it can fill viscous liquid quickly. improving working efficiency. Besides, it is controlled by a servo motor, which brings high accuracy.

Filling Nozzle

> 4 filling nozzle with anti-drip function. Made of 304 stainless steel, food grade.

Hopper

> The hopper is made of 304 stainless steel, food grade.

If the material has low viscosity, it can also be connected to the pipeline.

Servo Motor

> 4 servo motor drives the rotor pump for filling. The accuracy is as high as 99.5%.> Stable work and long service life.

Product Application

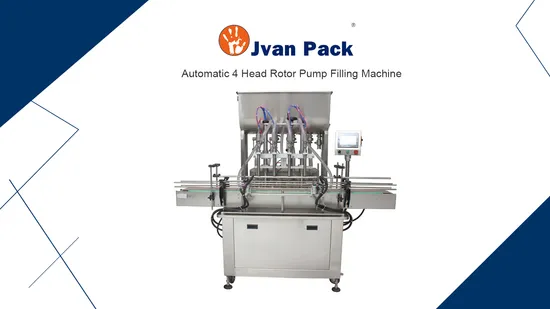

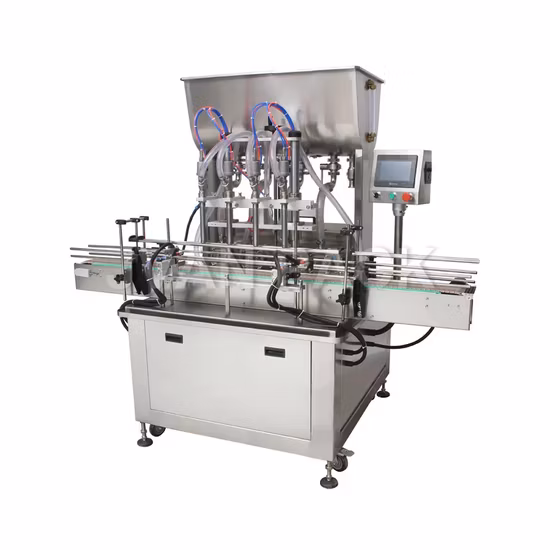

This filling machine is rotor pump filling machine which is made for filling high viscious product and non-flowable paste such as mayonnaise, sealant ,grease etc. The machine is made by in-line structure , filling head quantity can be custom-made according to different production capacity.The filling system is driven by servo motor which assure high filling accuracy ,also easy to set filling volume on the touch screen directly. It is widely used in the cosmetic, foodstuff, specialty chemical, pharmaceutical, and personal care industries.

Related Products

Company Profile

Wenzhou Jvan Machinery Group located in Wenzhou city, Zhejiang province, China. We havemore than ten years of experience in packaging machinery, specialized in bottle filling and cappingines for food and cosmetics industry, Our product exported to more than 80 countries regions aroundthe world and we have agent in Thailand, Greece, Slovakia and Malaysia, Good service has wonstrong support and trust from customers.We absorb the advanced automation technology at domestic and abroad, develop new models, optimizethe standard technology, expand the company's scale, rely on continuous innovation, as well as richdesign and production experience, with high-quality equipment and comprehensive after-sales service.has become the core enterpris of the professional packing machinery company, Our sales with apassionate and experlenced team, is always available to analyze your requirements and provide youmost effective solutions and get back to you in time.

Packaging & Shipping

FAQ

1. Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

2. How can I know your machine works well?
Before delivery, we shall test the machine working condition for you.3. How can I know your machine is designed for my product?You can send us samples of your product and we test it on machine.4. Why there are so many liquid filler looks same, but in huge difference on price?Because different manufacturers are using different method to manufacture the machine which will effect the fllingaccuracy and machine running life a lot. The same Oil material or cream material, A cheap manufacturer may usePneumatic piston Pump for filling while a professional manufacturer is using Servo Stainless Steel Piston pump.5. Why choose us?> Experience. Our company is specialized in manufacturing and selling the machines for many years.> Skilled and Professional man-power support.> Powerful ware housing ability, so make sure deliver quickly.
